DESIGN NOTES FOR TINY BASIC
by Dennis Allison, happy Lady, & friends
(reprinted from People's Computer Company Vol. 4, No. 2)
SOME MOTIVATIONS
A lot of people have just gotten into having their own computer. Often
they don't know too much about software and particularly systems software,
but would like to be able to program in something other than machine language.
The TINY BASIC project is aimed at you if you are one of these people.
Our goals are very limited -- to provide a minimal BASIC-like language
for writing simple programs. Later we may make it more complicated, but
now the name of the game is keep it simple. That translates to a limited
language (no floating point, no sines and cosines, no arrays, etc.) and
even this is a pretty difficult undertaking.
Originally we had planned to limit ourselves to the 8080, but with a
variety of new machines appearing at very low prices, we have decided to
try to make a portable TINY BASIC system even at the cost of some efficiency.
Most of the language processor will be written in a pseudo language which
is good for writing interpreters like TINY BASIC. This pseudo language
(which interprets TINY BASIC) will then itself be implemented interpretively.
To implement TINY BASIC on a new machine, one simply writes a simple interpreter
for this pseudo language and not a whole interpreter for TINY BASIC.
We'd like this to be a participatory design project. This sequence of
design notes follows the project which we are doing here at PCC. There
may well be errors in content and concept. If you're making a BASIC along
with us, we'd appreciate your help and your corrections.
Incidentally, were we building a production interpreter or compiler,
we would probably structure the whole system quite differently. We chose
this scheme because it is easy for people to change without access to specialized
tools like parser generator programs
THE TINY BASIC LANGUAGE
There isn't much to it. TINY BASIC looks like BASIC but all variables are
integers. There are no functions yet (we plan to add RND, TAB,
and some others later) - Statement numbers must be between 1 and 256 so
we can store them in a single byte. LIST only works on the whole
program. There is no FOR-NEXT statement. We've tried to simplify
the language to the point where it will I fit into a very small memory
so impecunious, tyros can use the system.
The boxes shown define the language. The guide gives a quick reference
to what we will include. The formal grammar defines exactly what is a legal
TINY BASIC statement. The grammar is important because our interpreter
design will be based upon it
IT'S ALL DONE WITH MIRRORS---OR HOW TINY BASIC WORKS
All the variables in TINY BASIC: the control information as to which statement
is presently being executed and how the next statement is to be found,
the return addresses of active GOSUBS -- all this information
constitutes the state of the TINY BASIC interpreter.
There are several procedures which act upon this state. One procedure
knows how to execute any TINY BASIC statement. Given the starting point
in memory of a TINY BASIC statement, it will execute it changing the state
of the machine as required. For example,
100 LET S = A+6
would change the value of S to the sum of the contents of the
variable A and the integer 6, and sets the next line counter to
whatever line follows 100, if the line exists.
A second procedure really controls the interpretation process by telling
the line interpreter what to do. When TINY BASIC is loaded, this control
routine performs some initialization, and then attempts to read a line
of information from the console. The characters typed in are saved in a
buffer, LBUF. It first checks to see if there is a leading line number.
If there is, it incorporates the line into the program by first deleting
the line with the same line number (if it is present) then inserting the
new line if it is of nonzero length. If there is no line number present,
it attempts to execute the line directly. With this strategy, all possible
Commands, even LIST and CLEAR and RUN are possible
inside programs. Suicidal programs are also certainly possible.
TINY BASIC GRAMMAR
The things in bold face stand for themselves. The names in lower
case represent classes of things. '::=' is read 'is defined as'.
The asterisk denotes zero or more occurances of the object to its immediate
left. Parenthesis group objects. e is the empty
set. | denotes the alternative (the exclusive-or).
line::= number statement
| statement
| statement::= |
PRINT expr-list |
|
IF expression relop expression THEN statement |
|
GOTO expression |
|
INPUT var-list |
|
LET var = expression |
|
GOSUB expression |
|
RETURN |
|
CLEAR |
|
LIST |
|
RUN |
|
END |
expr-list::= (string | expression) (, (string | expression)
)*
var-list::= var (, var)*
expression::= (+ | - | e)
term ((+ | -) term)*
term::= factor ((* | /) factor)*
factor::= var | number | (expression)
var::= A | B | C ..., | Y | Z
number::= digit digit*
digit::= 0 | 1 | 2 | ... | 8
| 9
relop::= < (> | = | e)
| > (< | = | e)
| =
A BREAK from the console will interrupt execution of the program.

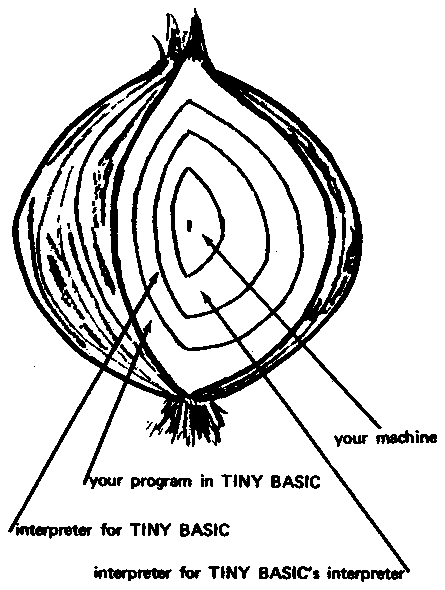

IMPLEMENTATION STRATEGIES AND ONIONS
When you write a program in TINY BASIC there is an abethect machine Which
is necessary to execute it. If you had a compiler it would make in the
machine language of your computer a program which emulates that abstract
machine for your program. An interpreter implements the abstract machine
for the entire language and rather than translating the program once to
machine code it translates it dynamically as needed. Interpreters are programs
and as such have their's as abstract machines. One can find a better instruction
set than that of any general purpose computer for writing a particular
interpreter. Then one can write an interpreter to interpret the instructions
of the interpreter which is interpreting the TINY BASIC program. And if
your machine is micro-programmed (like PACE), the machine which is interpreting
the interpreter interpreting the interpreter interpreting BASIC is in fact
interpreted.
This multilayered, onion-like approach gains two things: the interpreter
for the interpreter is smaller and simpler to write then an interpreter
for all of TINY BASIC, so the resultant system is fairly portable. Secondly,
since the main part of the TINY BASIC is programmed in a highly memory
efficient, tailored instruction set, the interpreted TINY BASIC will be
smaller than direct coding would allow. The cost is in execution speed,
but there is not such a thing as a free lunch.
QUICK REFERENCE GUIDE FOR TINY BASIC
LINE FORMAT AND EDITING
* Lines without numbers executed immediately
* Lines with numbers appended to program
* Line numbers must be 1 to 255
* Line number alone (empty line) deletes line
* Blanks are not significant, but key words must contain no unneeded
blanks
* '¨' deletes last character
* Xc deletes the entire line
EXECUTION CONTROL
CLEAR delete all lines and data
RUN run program
LIST list program
EXPRESSIONS
| Operators
|
Variables
A...Z (26 only) |
All arithmetic is modulo 215
(+/- 32767) |
INPUT / OUTPUT
PRINT X,Y,Z
PRINT 'A STRING'
PRINT 'THE ANSWER IS'
INPUT X
INPUT X,Y,Z
ASSIGNMENT STATEMENTS
LET X=3
LET X= -3+5*Y
CONTROL STATEMENTS
GOTO X+10
GOTO 35
GOSUB X+35
GOSUB 50
RETURN
IF X > Y THEN GOTO 30
LINE STORAGE
The TINY BASIC program is stored, except for line numbers, just as it is
entered from the console. In some BASIC interpreters, the program is translated
into an intermediate form which speeds execution and saves space. In the
TINY BASIC environment, the code necessary to provide the transformation
would easily exceed the space saved.
When a line is read in from the console device, it is saved in a 72-byte
array called LBUF (Line BUFfer). At the same time, a pointer, CP, is maintained
to indicate the next available space in LBUF. Indexing is, of course, from
zero.
Delete the leading blanks. If the string matches the BASIC line, advance
the cursor over the matched string and execute the next IL instruction.
If the match fails, continue at the IL instruction labeled lbl.
The TINY BASIC program is stored as an array called PGM in order of
increasing line numbers. A pointer, PGP, indicates the first free place,
in the array. PGP=0 indicates an empty program; PGP must be less than the
dimenstion of the array PGM. The PGM array must be reorganized when new
lines are added, lines replaced, or lines we deleted.
Insertion and deletion are carried on simultaneously. When a new line
is to be entered, the PGM array searches for a line with a line number
greater than or equal to that of the new line. Notice that lines begin
at PGM (0) and at PGM (j+1) for every j such that PGM (j)=[carriage return].
If the line numbers are equal, then the length of the existing line is
computed. A space equal to the length of the new line is created by moving
all lines with line numbers greater than that of the line being inserted
up or down as appropriate. The empty line is handled as a special case
in that no insertion is made.

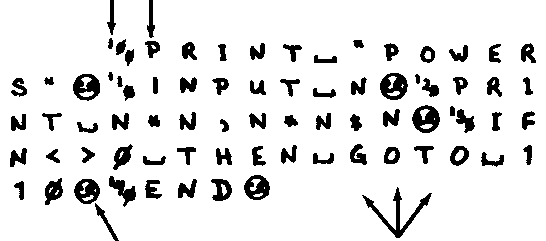

TINY BASIC AS STORED IN MEMORY
byte in memory treated as an integer
byte treated as a character
a carriage return symbol
free space
ERRORS AND ERROR RECOVERY
There are two places that errors can occur. If they occur in the TINY BASIC
system, they must be captured and action taken to preserve the system.
If the error occurs in the TINY BASIC program entered by the user, the
system should report the error and allow the user to fix his problem. An
error in TINY BASIC can result from a badly formed statement, an illegal
action (attempt to divide by zero, for example), or the exhaustion of some
resource such as memory space. In any case, the desired response is some
kind of error message. We plan to provide a message of the form:
!mmm AT nnn
where mmm is the error number and nnn is the line number at which it occurs.
For direct statements, the form will be:
!mmm
since there is no line number.
Some error indications we know we will need are:
| 1 Syntax error |
5 RETURN without GOSUB |
| 2 Missing line |
6 Expression too complex |
| 3 Line number too large |
7 Too many lines |
| 4 Too many GOSUBs |
8 Division by zero |
THE BASIC LINE EXECUTOR

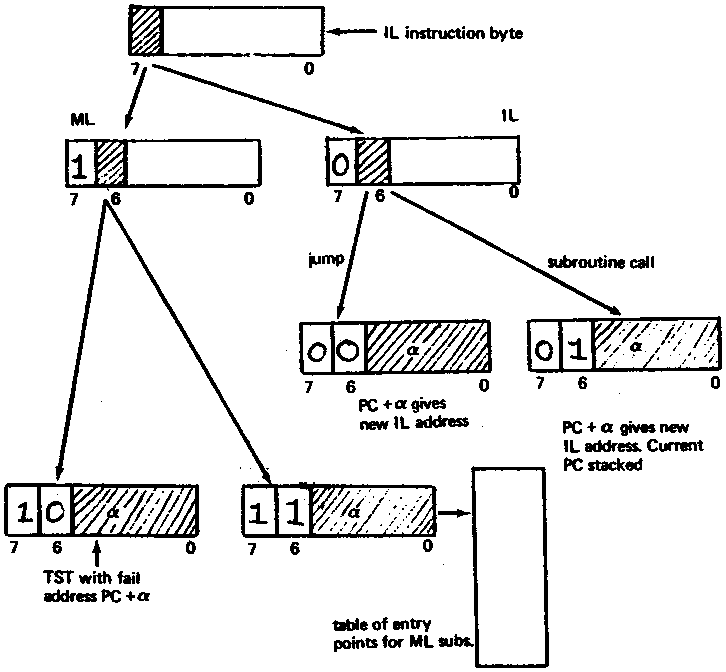

The execution routine is written in the interpretive language, IL. It consists
of a sequence of instructions which may call subroutines written in IL,
or invoke special instructions which are really subroutines written in
machine language.
Two different things are going on at the same time. The routines must
determine if the TINY BASIC line is a legal one and determine its form
according to the grammar; secondly, it must call appropriate action routines
to execute the line. Consider the TINY BASIC statement:
GOTO 100
At the start of the line, the interpreter looks for BASIC key words (LET,
GO, IF, RETURN, etc.) In this case, it finds GO, and then finds TO. By
this time it knows that it has found a GOTO statement. It then calls the
routine EXPR to obtain the destination line number of the GOTO. The expression
routine calls a whole bunch of other routines, eventually leaving the number
100 (the value of the expression) in a special place, the top of the arithmetic
expression stack. Since everything is legal, the XFER operator is invoked
to arrange for the execution of line 100 (if it exists) as the next line
to be executed.
Each TINY BASIC statement is handled similarly. Some procedural section
of an IL program corresponds to tests for the statement structure and acts
to execute the statement.
ENCODING
There are a number of different considerations in the TINY BASIC design
which fall in this general category. The problem is to make efficient use
of the bits available to store information without losing out by requiring
a too complex decoding scheme.
In a number of places we have to indicate the end of a string of characters
(or else we have to provide for its length somewhere). Commonly, one uses
a special character (NUL = OOH for example) to indicate the end. This costs
one byte per string but is easy to check. A better way depends upon the
fact that ASCII code does not use the high order bit; normally it is used
for parity on transmission. We can use it to indicate the end (that is,
last character) of a string. When we process the characters we must AND
the character with 07FH to scrub off the flag bit.
The interpreter opcodes can be encoded into a single byte. Operations
fall into two distinct classes -- those which call machine language subroutines,
and those which either call or transfer within the IL language itself.
The diagram indicates one encoding scheme. The CALL operations have been
subsumed into the IL instruction set. Addressing is shown to be relative
to PC for IL operations. Given the current IL program size, this seems
adequate. If it is not, the address could be used to index an array with
the ML class instructions.
ONE POTENTIAL IL ENCODING
TINY BASIC INTERPRETIVE OPERATIONS
| TST lbl,'string' |
delete leading blanks
If string matches the BASIC line, advance cursor over
the
matched string and execute the next IL instruction If
a match fails,
execute the IL instruction at the labled lbl. |
| CALL lbl |
Execute the IL subroutine starting at lbl. Sawe the IL
address following the CALL on the control stack. |
| RTN |
Return to the IL location specified by the top of the
control stack. |
| DONE |
Report a syntax error if after deletion leading blanks
the
cursor is not positioned to road a carriage return. |
| JMP lbl |
Continue execution of IL at the line specified. |
| PRS |
Print characters from the BASIC text up to but not including
the
closing quote mark. If a cr is found in the program text,
report an
error. Move the cursor to the point following the closing
quote. |
| PRN |
Print number obtained by popping the top of the expression
stack. |
| SPC |
Insert spaces, to move the print head to next zone. |
| NLINE |
Output CRLF to Printer. |
| NXT |
If the present mode is direct (line number zero), then
return to line
collection. Otherwise, select the next line and begin
interpretation. |
| XFER |
Test valiue at the top of the AE stack to be within range.
If not,
report an error. If so, attempt to position cursor at
that line.
If it exists, begin interpretation there; if not report
an error. |
| SAV |
Push present line number on SBRSTK. Report overflow as
error. |
| RSTR |
Replace current line number with value on SBRSTK.
If stack is empty, report error. |
| CMPR |
Compare AESTK(SP), the top of the stack, with AESTK(SP-2)
as per the relations indicated by AESTK(SP-1). Delete
all from stack.
If the condition specified did not match, then perform
NXT action. |
| LIT num |
Push the number num onto the AESTK
(Originally omitted) |
| INNUM |
Read a number from the terminal and push its value onto
the AESTK. |
| FIN |
Return to the line collect routine. |
| ERR |
Report syntax error am return to line collect routine. |
| ADD |
Replace top two elements of AESTK by their sum. |
| SUB |
Replace top two elements of AESTK by their difference. |
| NEG |
Replace top of AESTK with its neqative. |
| MUL |
Replace top two elements of AESTK by their product. |
| DIV |
Replace top two elements of AESTK by their quotient. |
| STORE |
Place the value at the top of the AESTK into the variable
designated by the index specified by the value immediately
below it. Delete both from the stack. |
| TSTV lbl |
Test for variable (i.e letter) if present. Place its
index value
onto the AESTK and continue execution at next suggested
location. Otherwise continue at lbl. |
| TSTN lbl |
Test for number. Of present, place its value onto the
AESTK and
continue execution at next suggested location. Otherwise
continue at lbl. |
| IND |
Replace top of stack by variable value it indexes. |
| LST |
List the contents of the program area. |
| INIT |
Perform global initilization
Clears program area, empties GOSUB stack, etc. |
| GETLINE |
Input a line to LBUF. |
| TSTL lbl |
After editing leading blanks, look for a line number.
Report error
if invalid; transfer to lbl if not present. |
| INSRT |
Insert line after deleting any line with same line number. |
| XINIT |
Perform initialization for each stated execution. Empties
AEXP stack. |
A STATEMENT EXECUTOR WRITTEN IN IL
This program in IL will execute a TINY BASIC statement. The operators TST,
TSTV,
TSTN,
and PRS all use a cursor to find characters of the TINY BASIC
line. Other operations (NXT, XPER) move the cursor so
it points to a TINY BASIC line. [I corrected a few
obvious errors, in red -- TP; Jeffrey Henning
found a couple more, in green]
;THE IL CONTROL
SECTION
START: INIT
;INITIALIZE
NLINE
;WRITE CRLF
CO: GETLINE
;WRITE PROMPT AND GET LINE
TSTL
XEC ;TEST FOR
LINE NUMBER
INSERT
;INSERT IT (MAY BE DELETE)
JMP
CO
XEC:
XINIT
;INITIALIZE
;STATEMENT EXECUTOR
STMT: TST S1,'LET'
;IS STATEMENT A LET
TSTV
S17
;YES, PLACE VAR ADDRESS ON AESTK
TST S17,'='
;(This line originally omitted)
CALL
EXPR ;PLACE EXPR
VALUE ON AESTK
DONE
;REPORT ERROR IF NOT NEXT
STORE
;STORE RESULT
NXT
;AND SEQUENCE TO NEXT
S1: TST
S3,'GO' ;GOTO OT GOSUB?
TST
S2,'TO' ;YES...TO, OR...SUB
CALL
EXPR ;GET LABEL
DONE
;ERROR IF CR NOT NEXT
XPER
;SET UP AND JUMP
S2: TST
S17,'SUB' ;ERROR IF
NO MATCH
CALL
EXPR ;GET DESTINATION
DONE
;ERROR IF CR NOT NEXT
SAV
;SAVE RETURN LINE
XPER
;AND JUMP
S3: TST
S8,'PRINT' ;PRINT
S4: TST
S7,'"' ;TEST FOR QUOTE
PRS
;PRINT STRING
S5: TST
S6,',' ;IS THERE MORE?
SPC
;SPACE TO NEXT ZONE
JMP
S4 ;YES
JUMP BACK
S6: DONE
;ERROR IF CR NOT NEXT
NLINE
NXT
S7: CALL
EXPR
PRN
;PRINT IT
JMP
S5 ;IS
THERE MORE?
S8: TST
S9,'IF' ;IF STATEMENT
CALL
EXPR ;GET EXPRESSION
CALL
RELOP ;DETERMINE OPR AND
PUT ON STK
CALL
EXPR ;GET EXPRESSION
TST S17,'THEN' ;(This line originally
omitted)
CMPR
;PERFORM COMPARISON -- PERFORMS NXT IF FALSE
JMP
STMT
S9: TST
S12,'INPUT' ;INPUT STATEMENT
S10: TSTV
S17
;GET VAR ADDRESS (Originally CALL VAR = nonexist)
INNUM
;MOVE NUMBER FROM TTY TO AESTK
STORE
;STORE IT
TST
S11,',' ;IS THERE MORE?
JMP
S10 ;YES
S11: DONE
;MUST BE CR
NXT
;SEQUENCE TO NEXT
S12: TST
S13,'RETURN' ;RETURN STATEMENT
DONE
;MUST BE CR
RSTR
;RESTORE LINE NUMBER OF CALL
NXT
;SEQUENCE TO NEXT STATEMENT
S13: TST
S14,'END'
FIN
S14: TST
S15,'LIST' ;LIST COMMAND
DONE
LST
NXT
S15: TST
S16,'RUN' ;RUN COMMAND
DONE
NXT
S16: TST
S17,'CLEAR' ;CLEAR COMMAND
DONE
JMP
START
S17: ERR
;SYNTAX ERROR
EXPR: TST E0,'-'
CALL
TERM ;TEST FOR UNARY
-.
NEG
;GET VALUE
JMP
E1 ;NEGATE
IT
E0: TST
E1A,'+'
;LOOK FOR MORE
E1A:
CALL TERM
;TEST FOR UNARY +
E1: TST
E2,'+' ;LEADING TERM
CALL
TERM
ADD
JMP
E1
E2: TST
E3,'-' ;ANY MORE?
CALL
TERM ;DIFFERENCE
TERM
SUB
JMP
E1
E3:T2: RTN
;ANY MORE?
TERM: CALL FACT
TO: TST
T1,"*"
CALL
FACT ;PRODUCT FACTOR.
MUL
JMP
T0
T1: TST
T2,'/'
CALL
FACT ;QUOTIENT FACTOR.
DIV
JMP
T0
FACT: TSTV F0
IND
;YES, GET THE VALUE.
RTN
F0: TSTN
F1 ;NUMBER,
GET ITS VALUE.
RTN
F1: TST
F2,'(' ;PARENTHESIZED EXPR.
CALL
EXPR
TST
F2,')'
RTN
F2: ERR
;ERROR.
RELOP: TST RO,'='
LIT
0
;=
RTN
R0: TST
R4,'<'
TST
R1,'='
LIT
2
;<=
RTN
R1: TST
R3,'>'
LIT
3
;<>
RTN
R3: LIT
1
;<
RTN
R4: TST
S17,'>'
TST
R5,'='
LIT
5
;>=
RTN
R5: TST
R6,'<'
LIT
3
RTN
;(This line originally omitted)
R6: LIT
4
RTN
